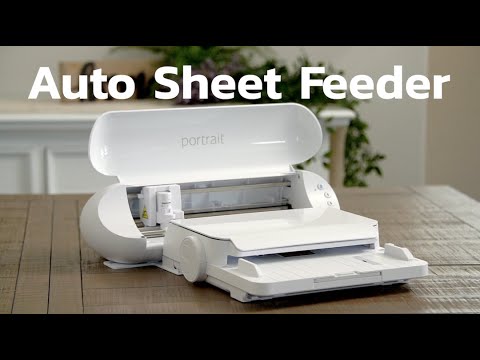

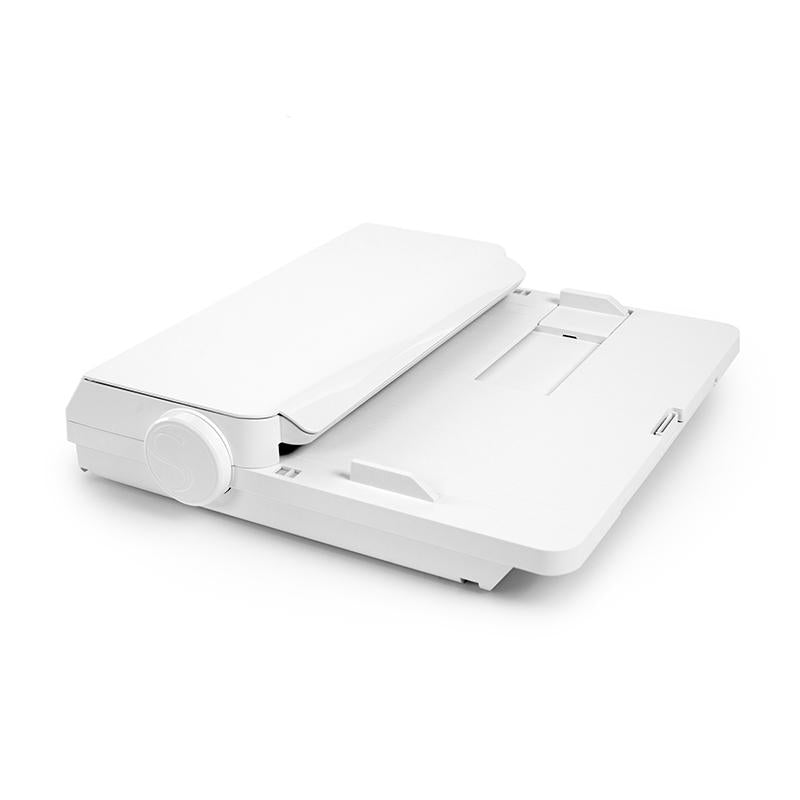

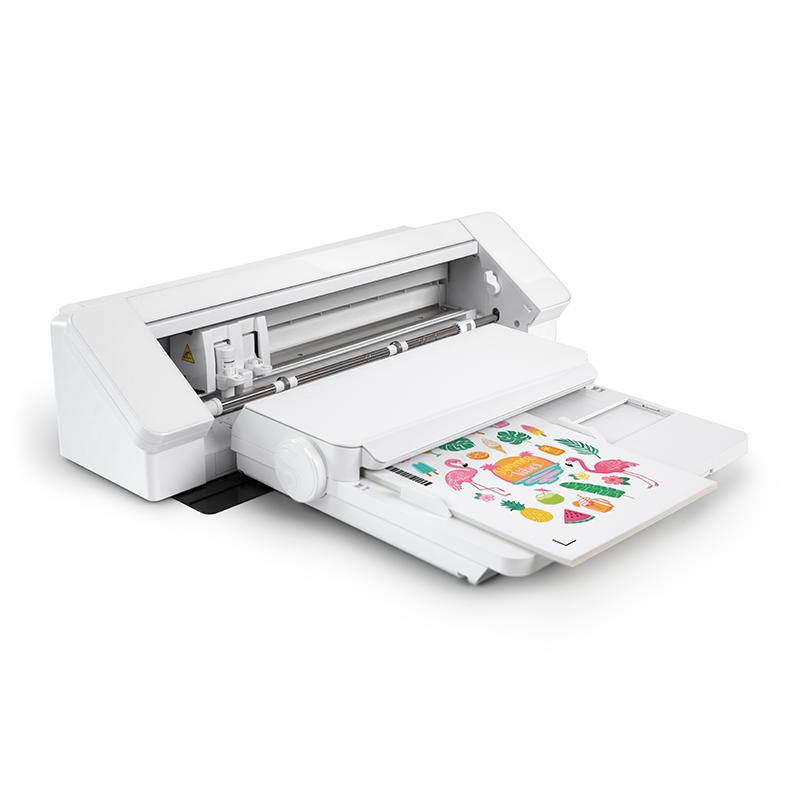

The Auto Sheet Feeder A3 Plus streamlines bulk cutting by automatically loading sheet materials into your Silhouette machine. Stack up to 20 sheets in the top tray and set copy quantities in Silhouette Studio®. The feeder advances each sheet and ejects it beneath the tray for seamless, matless production. Recut the same design multiple times or run different jobs via barcodes in a single session.
| Compatible Media Sizes |
- A3: 11.7 in × 16.5 in (297 mm × 42 mm)
- 12 in × 12 in (305 mm × 305 mm)
- A4: 8.27 in × 11.7 in (210 mm × 297 mm)
- US Letter: 8.5 in × 11 in (216 mm × 279 mm)
|
| Compatible Media Types |
Sticker paper, photo paper, and other rigid sheet materials. (Curled or electrostatically charged media may not be used) |
| Compatible Media Thickness |
0.18 mm ~ 0.26 mm |
| Maximum Material Capacity |
20* / ≤ 4.4 mm (*Maximum capacity varies by media thickness.)
|
| Interface |
USB 2.0 high speed (no Bluetooth® compatibility) |
| Unit Dimensions |
15.28 in × 14.5 in × 3.3 in (38.8 cm × 36.8 cm × 8.4 cm) |
| Unit Weight |
4 lb 5.1 oz (1.96 kg) |
| Shipping Dimensions |
18.1 in × 15.83 in × 5.2 in (46 cm × 40.2 cm × 13.2 cm) |
| Shipping Weight |
5 lb 15.2 oz (2.7 kg) |
